About this item

• In order to make the LED sheet work, 24V transformer is totally necessary.

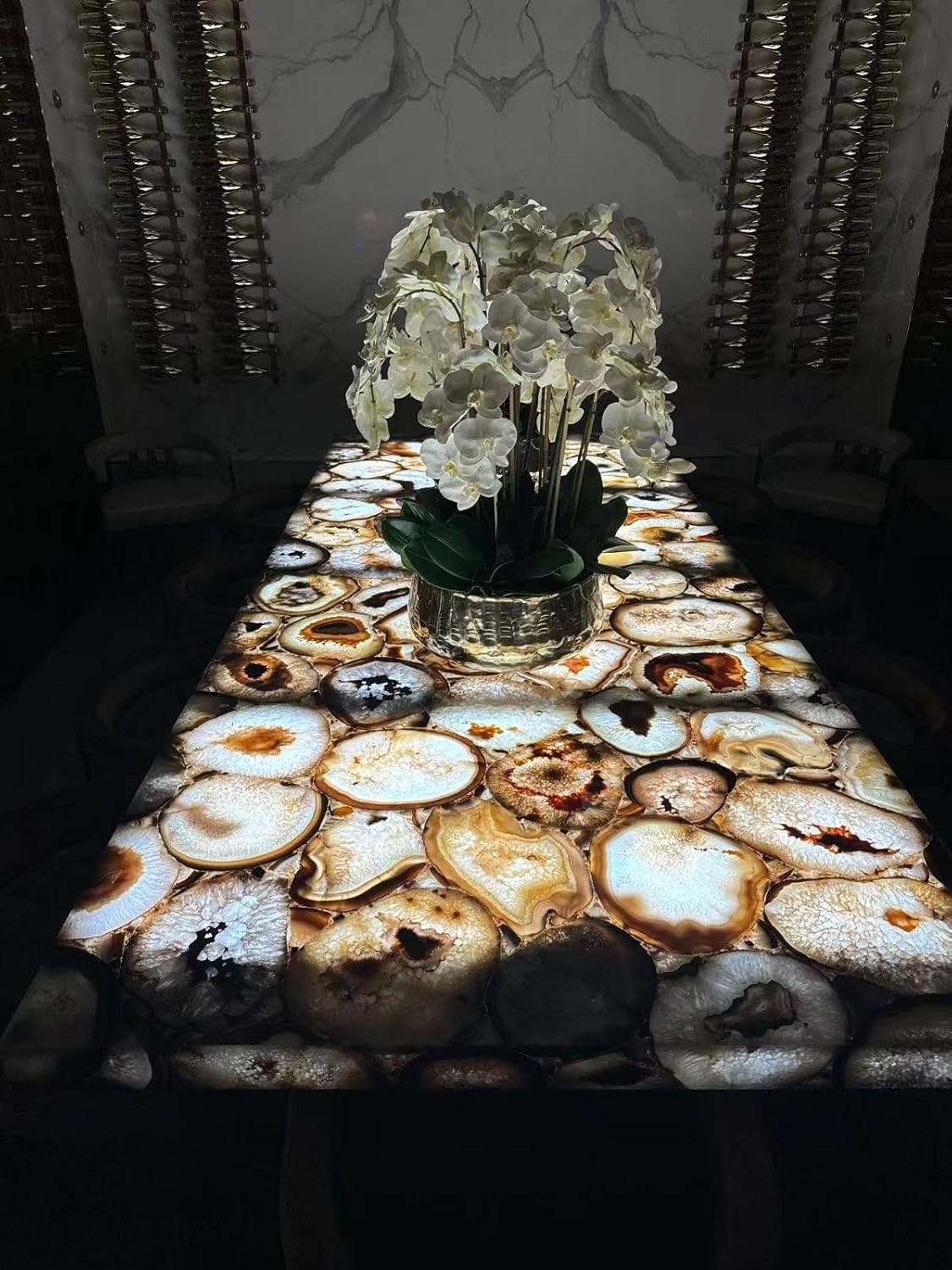

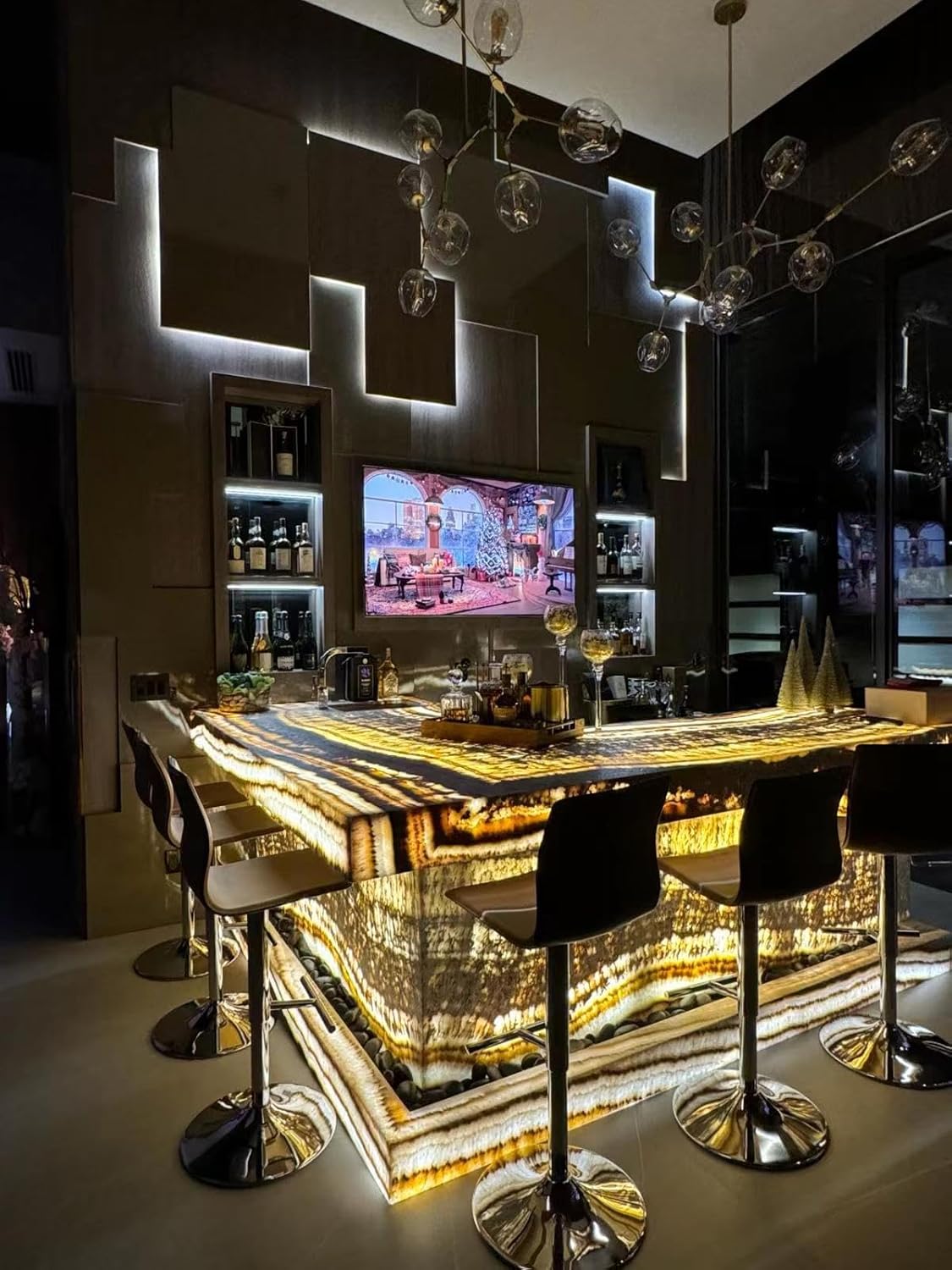

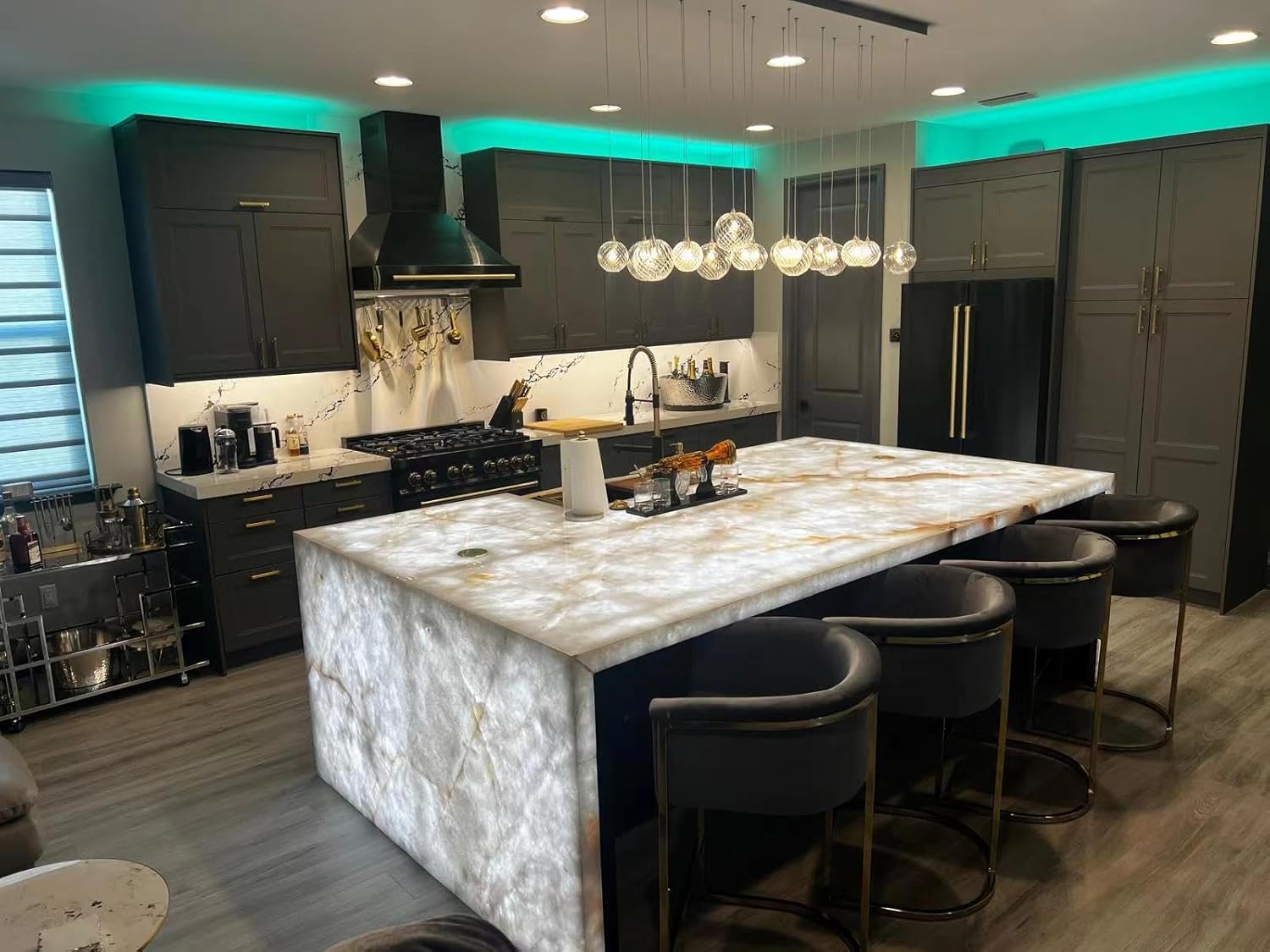

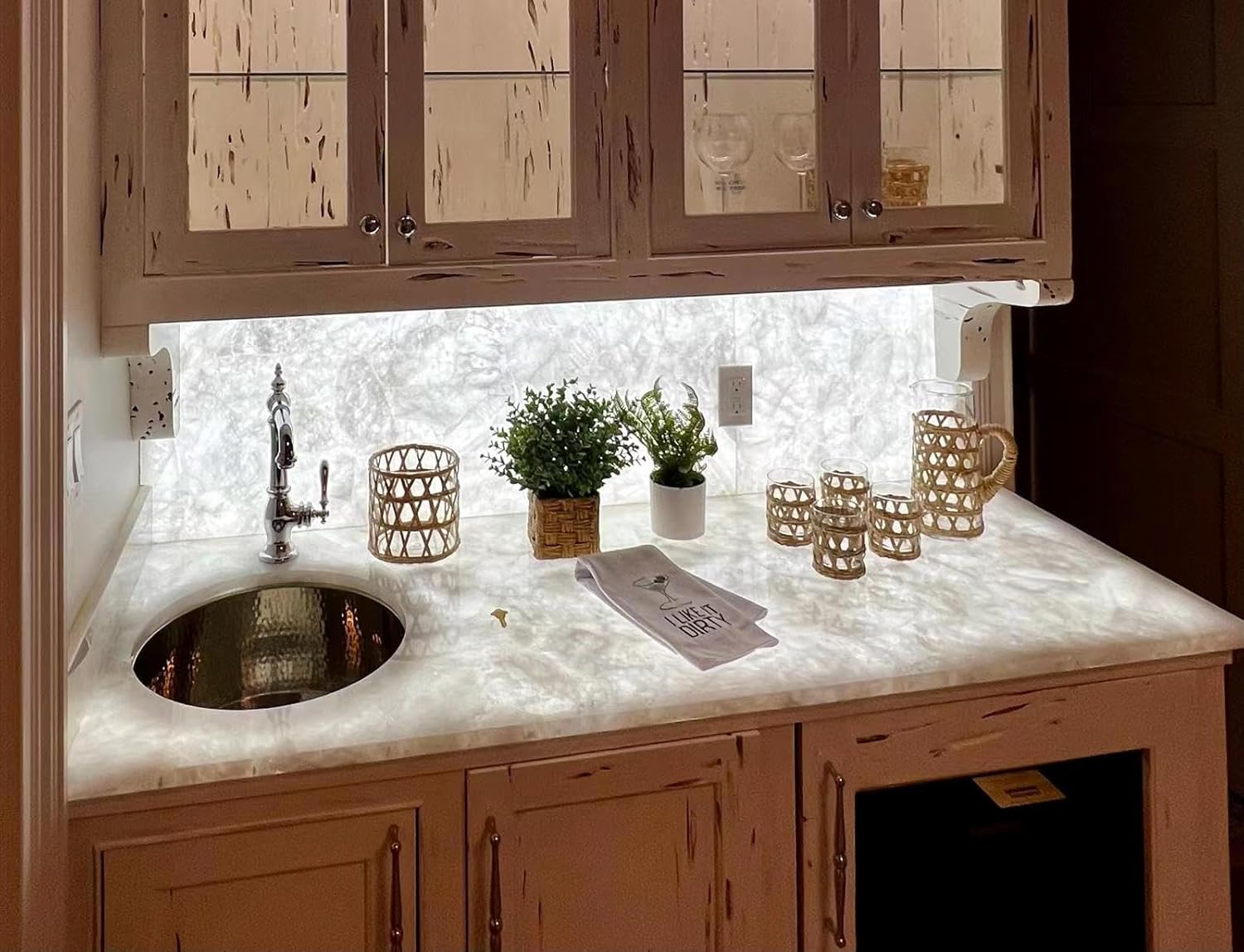

• CRI>90 Ideal for large applications, the backlit countertop we showed on Aamzon is from Natural stone or Quartz. If your countertop is glass or thin quartz below 0.3inch thickness, please consider the light spot problem and choose our LED sheet carefully.

• 6000K, DC24V, 28W per sheet, bright. 19.3x9.6inch per sheet, 2 oz per sheet, suggest 3/4-1 inch space between the LED panel and countertop.

• We have professional USA local engineer to supply installation coach, we can supply the layout and circuit diagram design free.

• Peel& stick tape backing Suitable for curved area, also assigned screw.

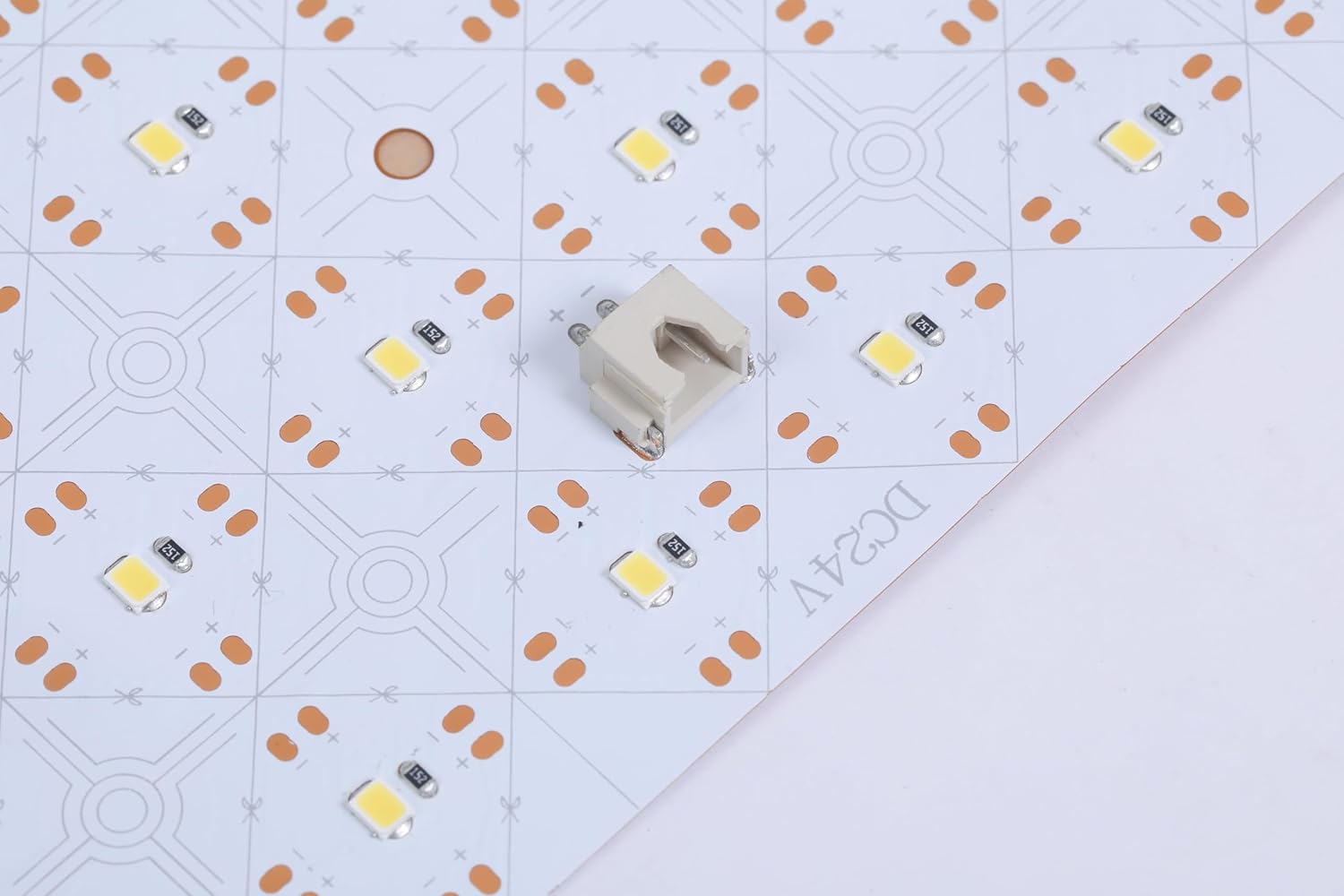

• Working life time 30,000 hours. IP rating : IP 20. Inside LED chip is small chip, the LED lead is siliver, the PCB board is 25um/25um

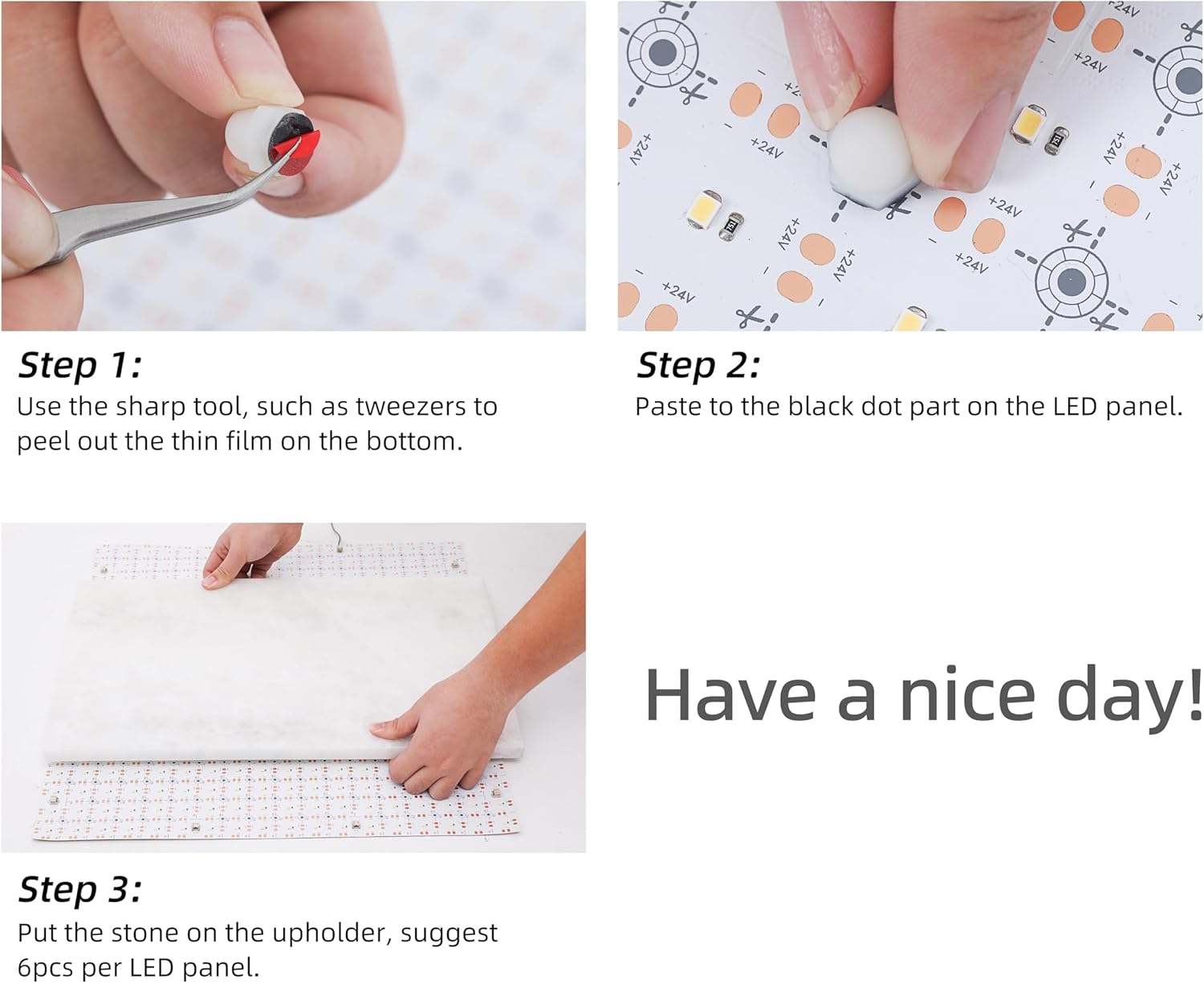

• What inside package: 4pcs led panel,total 5 square foot, 8 pcs short connect line each is 3 inch length, 8 pcs long connector line each is 8 inch, 1 installation manual, 24pcs spacer.

• Transformer, controller, amplifier is NOT included, the reason is different project will use different LED panel and different transformer and controller etc, it can not be standard.

• The LED panel can supply even light distribution, can be cut by specific length, it is compatible with dimmer switch.

Product information

Technical Details

Product details

• Package Dimensions ‏ : ‎ 20.6 x 10.8 x 2.1 inches; 7.04 ounces

• Item model number ‏ : ‎ Modle 1

• Date First Available ‏ : ‎ September 5, 2022

• Manufacturer ‏ : ‎ Minxue

• ASIN ‏ : ‎ B0DC4BWQLX
